Drive Master XL
Omni Adjustable Pile Driver

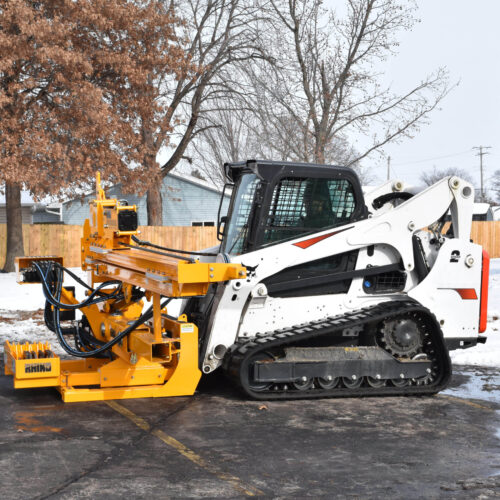

The Drive Master XL is an omni-adjustable skid steer pile driver engineered for fast, precise, and plumb pile installations. Designed with an optional job box for adapters, and a puller, it delivers professional-grade performance across a wide range of applications - Solar field test pile, equipment pile, remediation work, highway guardrail install/repair, and larger fence installations.
Built and supported in the USA, the Drive Master XL is powered by an 800 ft-lb (1,085 joule) hydraulic hammer that safely boosts productivity, shortens installation time, and increases overall jobsite profitability.
Features and Benefits
- Omni Adjustable Mast tilts 2 degrees right, 90 degrees left, and 10 degrees front/back
- Attachment adjusts 10 in. front-to-back, and 24 in. left to right
- Accommodates (piles) up to 15 feet (4.6m) tall
- Drives pile within 30" of ground level (8" of ground level with optional Extended Drive Cap PN 360369)
- 7 Different Drive Adapters/Guideplates available
Utilize existing company owned (or rental) hydraulic operated skid steer.
- Eliminates the need for expensive self-propelled pile drivers
- Faster jobsite travel and reduced setup time
- Universal skid steer mount (Rhino plate standard; custom plates available)
Performance and Durability
- Furukawa FX55 hydraulic hammer with 2-year warranty
- Powerful 800 ft. lbs. (1,085 joules) of impact energy per stroke (approx. 1,000 blows/min.)
- Upgraded piston for increased speed and impact energy
- Mono-block design - Reduced maintenance with only two moving parts
Optional Accessories

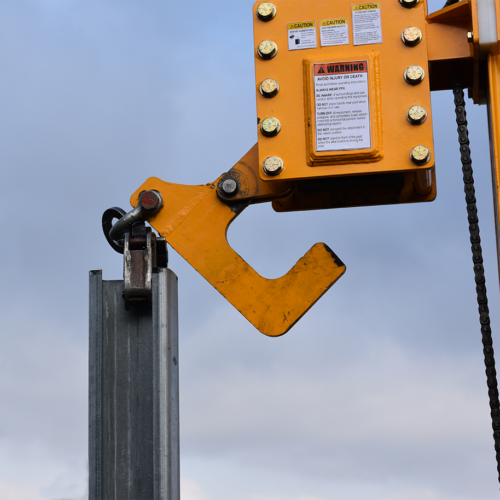

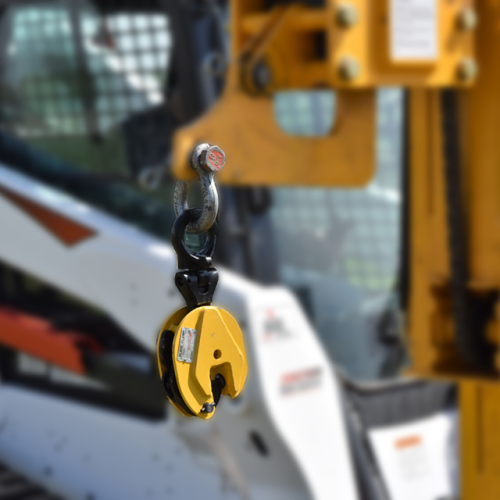

- Vibratory-assist pile puller kit
- Adapters and guides for common and custom pile sizes
- Extended Drive Cap
Warranty - 3-Year on materials and workmanship / 2-Years on the Furukawa Hydraulic Hammer.
- Parts and service available throughout the USA
- Readily available SAE fittings and hardware - Overnight shipment available on most parts
- Hydraulic components are inventoried, or repairable by most local hydraulic repair shops
Quality US materials and workmanship for dependability, minimal maintenance, and a long operating life.
Features
-
Omni Adjustable
Mast tilts 2 degrees right, 90 degrees left, and 10 degrees front and back. Attachment adjusts 10 inches front-to-back, and 24 inches left to right.
-

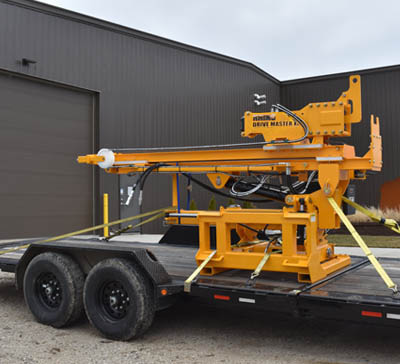

Easy Transport
Easily transport company owned, or rental, hydraulic operated equipment (skid steer or loader) and Solar Pro Attachment.
-
Bottom Guide Foot
Secures Pile and helps maintain plumb when driving
-

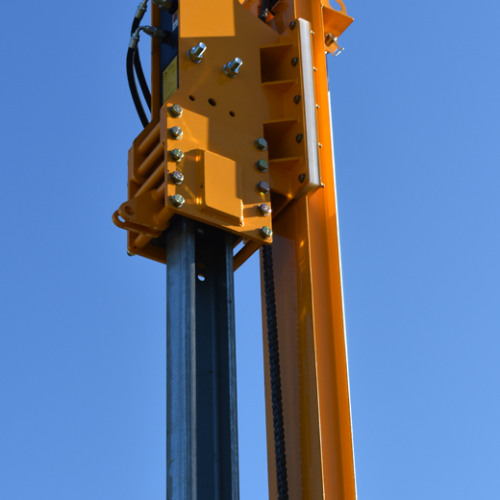

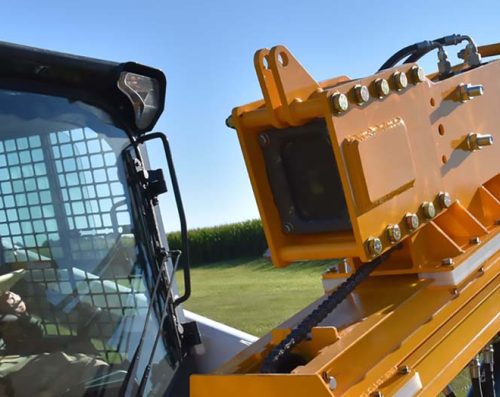

Removable Adapter Plate
Provides efficient impact force when driving to prevent deformation of the pile
-
Level indicators
Two quick-read leveling indicators to plumb pilings
-
Control Center
Omni Directional Adjustment for precise positioning and leveling of the pile on uneven terrain.
-
Made in the USA
Parts and service available throughout the USA - overnight shipment available on most parts
-
Adapter Job Box
Optional Job Box holds 7 adapters, corresponding guide plates, and a pile puller kit.
